What is the Difference between Plate and Frame Filter Press and Chamber Filter Press?

There are many types and models of filter presses, the most common of which are plate and frame filter presses and chamber filter presses. These two filter presses have differences, and each has its own characteristics. This article will introduce the difference between plate and frame filter press and chamber filter press in detail.

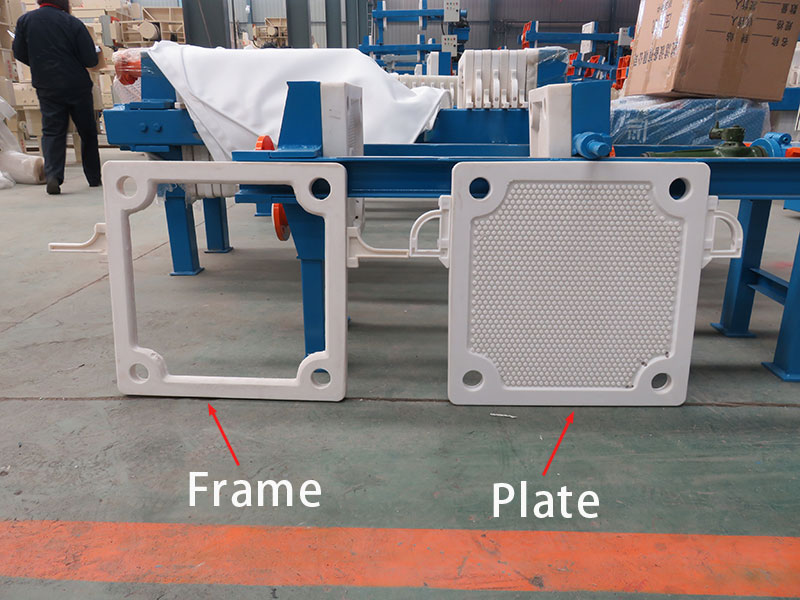

What is a plate and frame type filter press?

Plate and frame filter presses, as the name suggests, consist of alternately stacked plates and frames. The plate has grooves for the filter cloth, and the frame serves as a chamber for feeding the slurry. When pressing begins, the slurry is forced through the filter cloth, and the solids are retained in the frame.

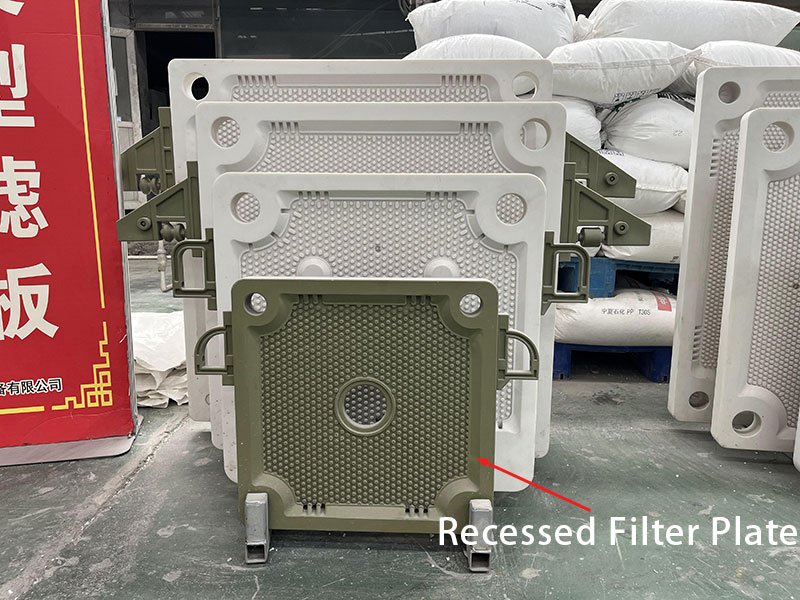

What is a recessed chamber filter press?

Chamber filter presses consist only of plates, each with grooves on both sides. When two plates are pressed together, a chamber forms between them. Filter cloths are arranged in grooves, and the slurry is fed directly into these filter chambers.

Plate and frame filter press VS Recessed plate filter press

The filter plates are different: the plate and frame filter press consist of a plate and a frame, and the recessed plate filter press consists of the same plate.

The degree of automation is different:  the chamber filter press can realize automatic plate pulling, but the plate and frame filter press cannot.

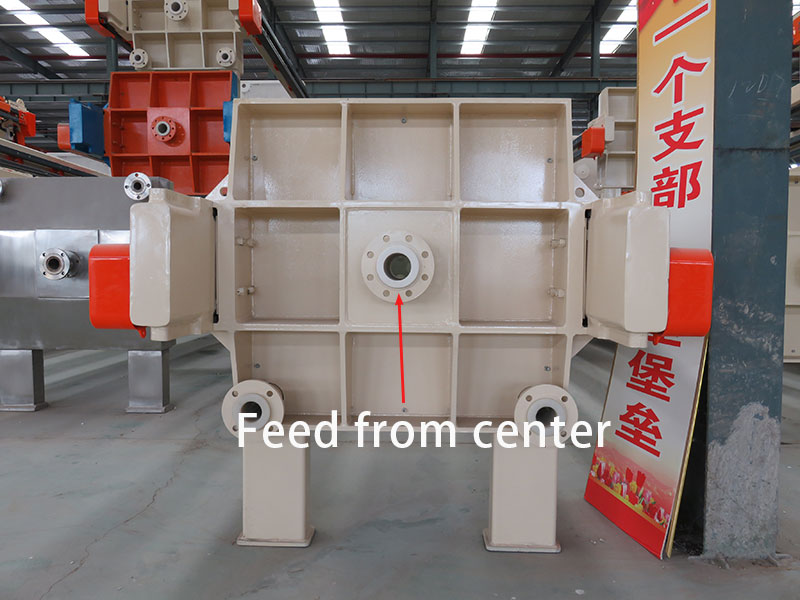

The feeding methods are different: the plate and frame filter press feed from the corner holes, and the chamber filter press feed from the center.

Conclusion

The above is the information we have compiled for you about the differences between plate and frame filter press and chamber filter press. We hope this can help you better understand the filter press.
