Shaftless Screw Conveyor

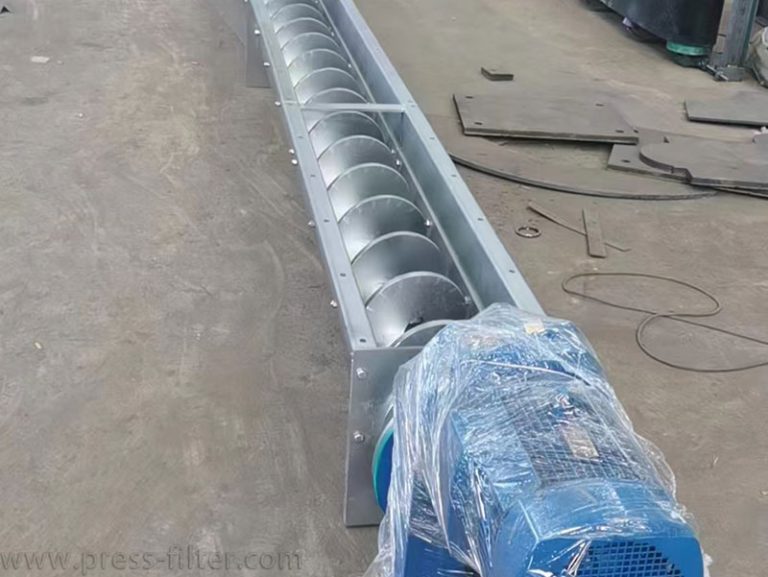

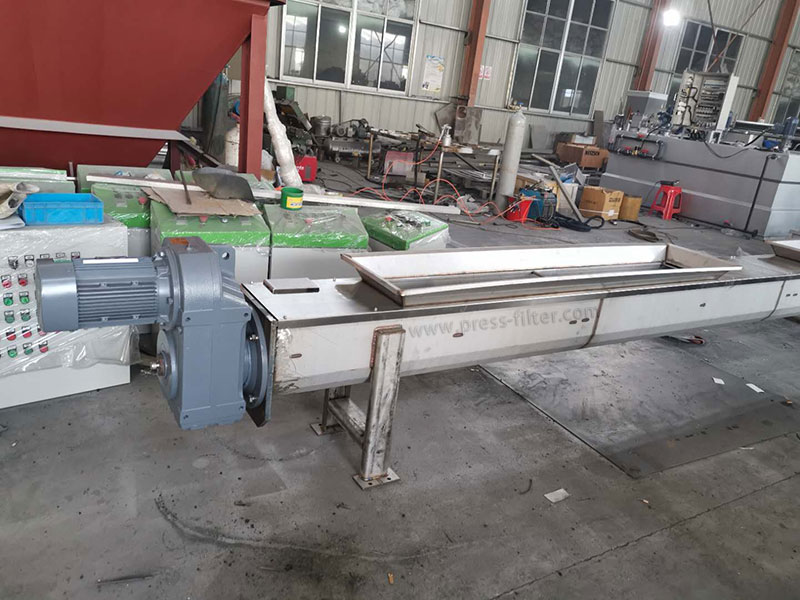

The shaftless screw conveyor is a conveying equipment used with the filter press. Its function is the same as that of the belt conveyor. It is mainly placed under the filter press to convey the filter cake. The screw conveyor materials are carbon steel or stainless steel and can be customized according to specific needs. In addition to shaftless screw conveyors, there are also horizontal screw conveyors, inclined screw conveyors, vertical screw conveyors, and live bottom screw conveyors.

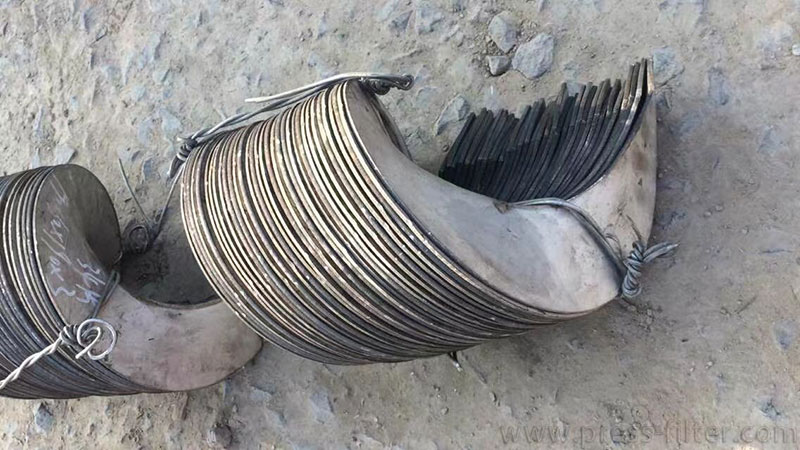

Filter presses mainly use shaftless screw conveyors to convey filter cakes. And usually, there is a nylon lining inside the outer casing of the shaftless screw conveyor to reduce the wear between the blades and the outer casing. The shaftless screw conveyor dimension is determined by the filter press size. You only need to tell us the size of your filter press, and we can customize the screw conveyor to the appropriate size for you.

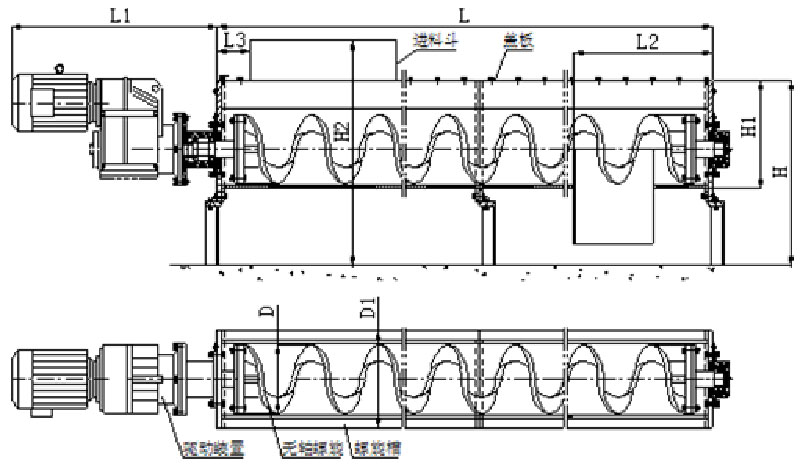

Shaftless Screw Conveyor Diagram

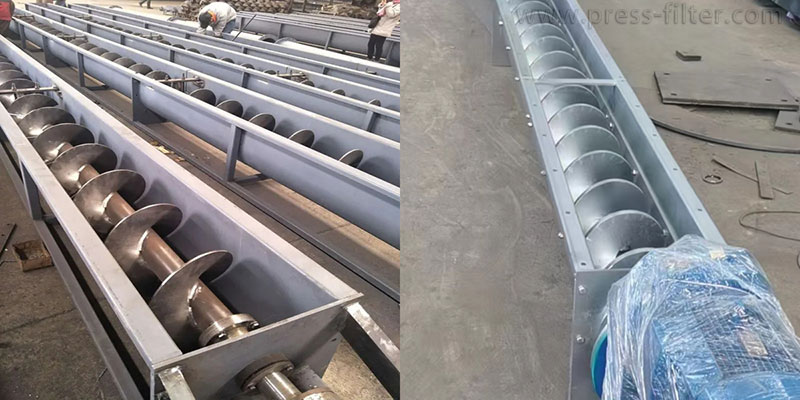

Screw Conveyor Without Shaft VS Shafted Screw Conveyor
The biggest difference between these two conveyors is the structure. As the name implies, the shafted screw conveyor has one more solid shaft than the shaftless screw conveyor, which can fix the blades.
The shaft screw conveyor has a relatively stable structure because it is supported by a central shaft and is suitable for long-distance material transportation. During the transportation process, the material moves along the axis direction, which makes it difficult to deviate and has less friction with the shell. However, due to the existence of the center shaft, the filter cake is easily blocked at the intermediate bearing, and the filling rate is low.
The screw conveyor without a shaft has a higher filling rate due to the lack of a central shaft, is not easily blocked, and has a high transportation efficiency. The lack of an intermediate shaft makes the transportation of the shaftless screw conveyor more flexible. However, the wear between the blades and the shell is faster, and the service life will be shortened. It is not suitable for long-distance transportation.
The use of a shaftless screw conveyor greatly improves the transportation efficiency of filter cake. In addition to a shaftless screw conveyor, we also have a belt conveyor to choose from. If you need anything, please contact us and tell us the model and size of the filter press you are using. We can customize the shaftless screw conveyor of the appropriate size according to your filter press.
