Filter Press Pressure Gauge

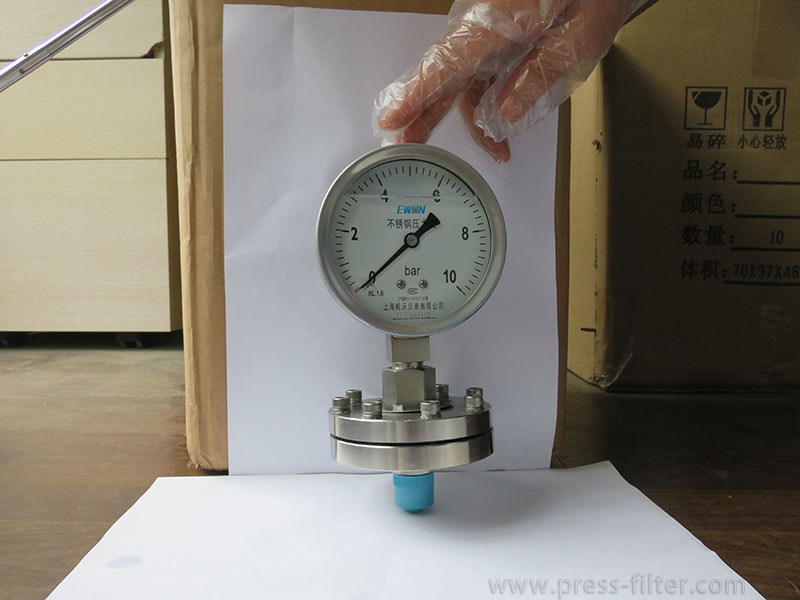

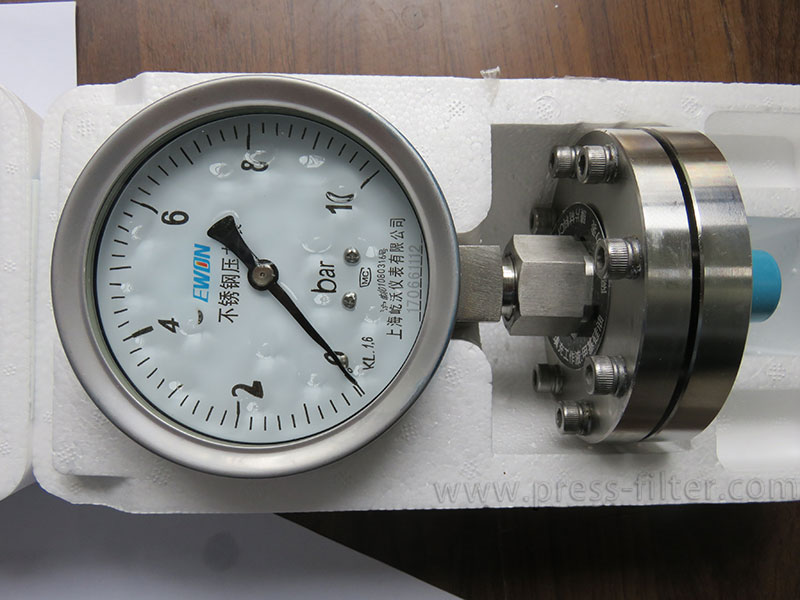

The pressure gauge of the filter press is a key measuring tool used to monitor the pressure of the filter press during operation. It can help the operator clearly understand the pressure of the filtration system so as to judge the operating status of the equipment and make timely adjustments. There are two types of pressure gauges used in the filter press: ordinary pressure gauge and electric contact pressure gauge. The following will introduce you to ordinary pressure gauges.

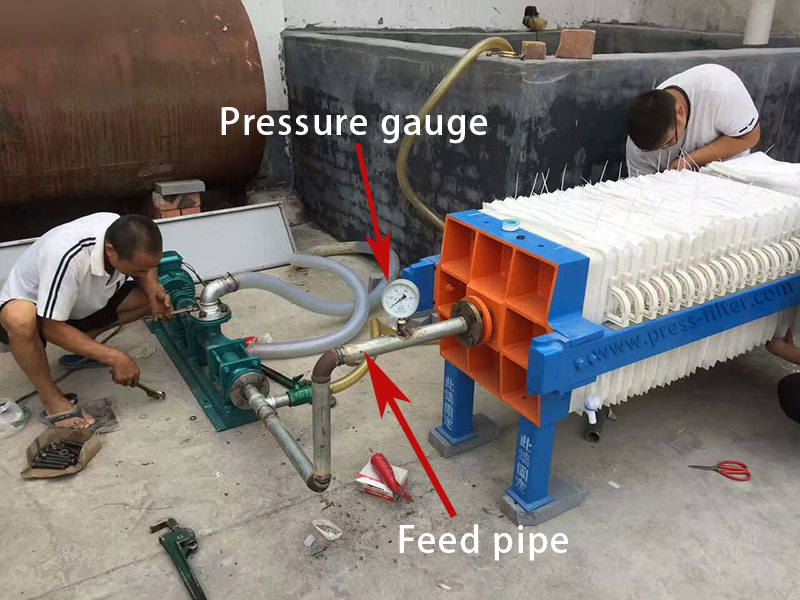

Ordinary pressure gauges are usually used to measure the feed pressure of filter presses and are mainly installed on the feed pipe of the filter press. The common range is between 0-1.2 MPa, and the feed pressure is six kilograms. Higher pressure ranges can also be used according to different occasions or needs.
The pressure gauge is installed on the feed pipe to monitor the slurry pressure entering the filter press in real-time. The stability of the feed pressure has a direct impact on the efficiency and effect of the filtration process. The appropriate feed pressure helps to evenly distribute the slurry and ensure filtration efficiency. If the feed pressure is too high, it may cause damage to the filter plate or breakage of the filter cloth, while too low pressure will slow down the filtration speed or fail to form a filter cake.
By observing the value of the pressure gauge, the operator can adjust the pressure of the feed pump in time to ensure that the filter press operates under optimal working conditions. When the feed pressure is abnormal, the real-time data provided by the pressure gauge can help the operator make a quick judgment to prevent equipment damage or affect production efficiency.
If the feed pressure is abnormal, such as a sudden increase or decrease, it may indicate a fault in the system, such as a clogged feed pipe, a pump failure, or a clogged filter cloth. Through the pressure gauge reading, the problem can be quickly located, and appropriate measures can be taken. In short, the filter press plays a very important role in the use of the filter press and is an indispensable accessory.
