Customizable Filter Plates
There are many types of filter plates with various sizes and shapes. We can customize the filter plates to suit your industry and filtration requirements. Customizable filter plates are filter plates designed and manufactured for specific needs and applications. The design of this filter plate takes into account many factors to ensure optimal performance under specific process conditions.
We can make molds to customize filter plates according to the drawings provided by customers, such as different shapes, different sizes, different feed positions, different convex point distribution, corner hole distribution, etc. When customizing filter plates, size, shape, pore size, and feed port location are key design parameters that can be optimized based on specific filtration needs and equipment requirements. Below is a detailed description of these parameters.

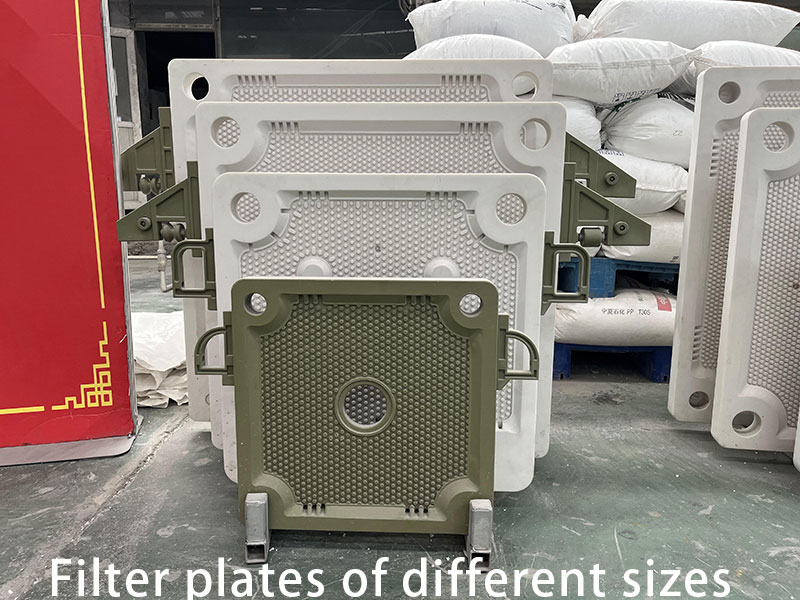

Filter Plate Size
First, the length and width of the filter plate can be customized according to needs. Generally, standard sizes are selected, such as 500mm, 700mm, 800mm, 1000mm, etc. If there are special requirements, non-standard sizes can be customized according to specific equipment or process requirements, which can optimize filtration efficiency and equipment utilization.
Secondly, the thickness of the filter plate can also be customized according to customer requirements. The thickness of the normal-size filter plate is 50,60mm. If other thicknesses of filter plates are required, the thickness can be customized according to your needs.

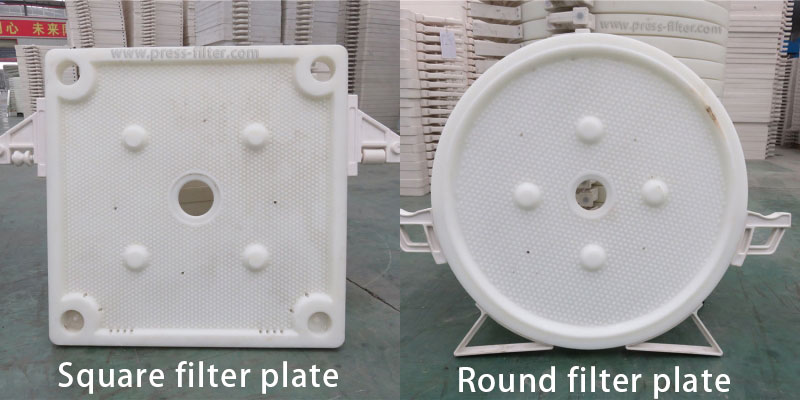

Filter Plate Shape
The most common shape is square, which is easy to arrange and assemble and suitable for most filtering equipment. Some special applications, such as certain specific industrial equipment or filtering requirements, may require non-standard filter plates. For example, circular filter plates are used to process ceramics and kaolin.

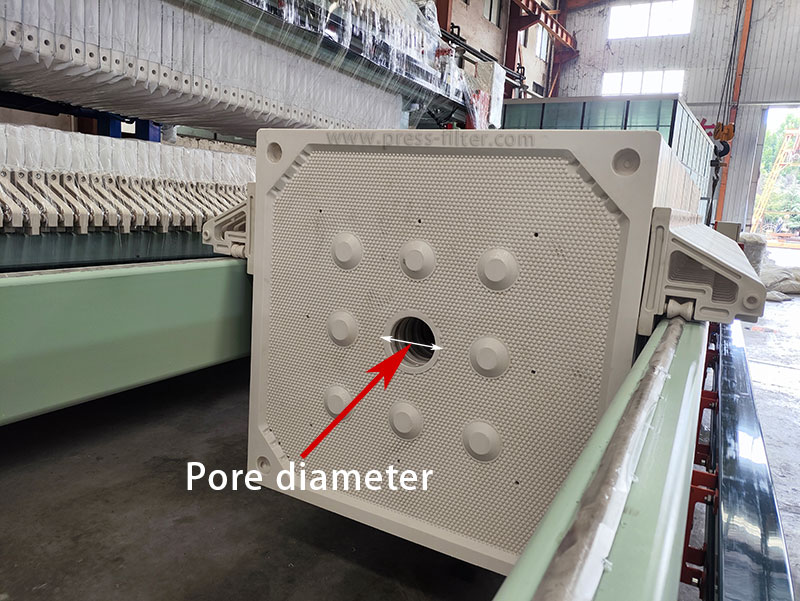

Pore Size
Pore size also affects filtration efficiency. The normal aperture size ranges from 50 to 180 mm. A larger pore size is suitable for filtering materials with larger particles and feeds faster. A smaller pore size feeds slower and may increase filtration time.
Feed Port Location
Except for the plate and frame filter plates with feed ports at the four corners, the feed ports of ordinary filter plates are located in the center of the filter plate, which is suitable for most applications and ensures that the filtrate is evenly distributed on the filter plate.

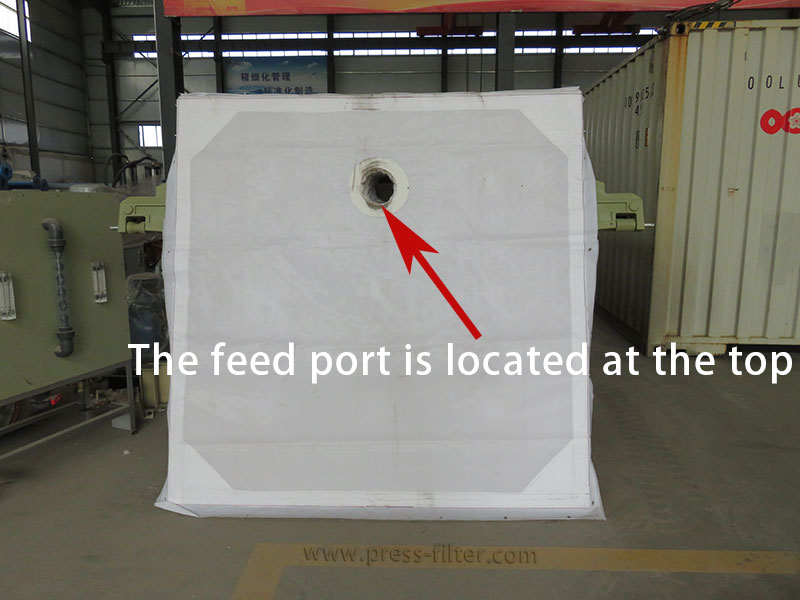

However, some customers require feed ports in special locations; for example, some customers require feed ports to be located slightly above the filter plate.
In summary, we can customize filter plates of various sizes and shapes. If you have any needs, please contact us as soon as possible, and we will provide you with the best-customized solution.
