Application of Belt Filter Press in Coconut Bran Dehydration

Application of Belt Filter Press in Coconut Bran Dehydration

Coconut peat (also known as coconut shell fiber or coconut peat powder) is a byproduct of coconut processing. It is a pure natural organic medium that falls off from the coconut shell fiber during processing. It is often used in agriculture, horticulture, and substrate cultivation. However, coconut peat usually needs to be dehydrated before use to reduce its moisture content for easy storage, transportation, and use. Belt filter press is widely used in coconut peat dehydration, especially in coconut peat production and processing industries.

DY Belt Filter

Introduction: DY series automatic belt press filter is a new product researched by our company and the national research institutes on the basis of foreign advanced filtering te...

Read More

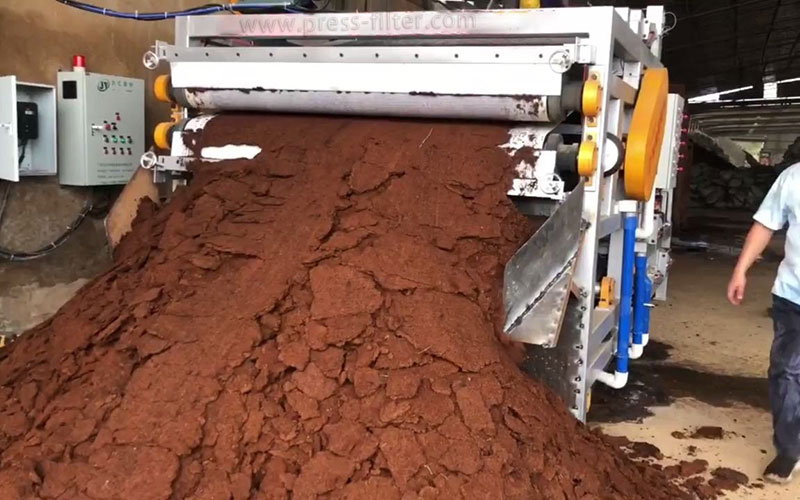

Specific Steps of Dehydration in Belt Filter Press

Self-gravity Zone
The coconut bran slurry is evenly distributed on the filter belt of the belt filter press. After entering the self-gravity zone, the slurry moves on the filter belt, and most of the free water in the slurry is naturally discharged by gravity. This area does not apply external force and mainly separates the water from the slurry through free flow.
The dehydration efficiency of the self-gravity zone directly affects the effect of the subsequent wedge zone and squeeze zone, so at this stage, the slurry must be evenly distributed to ensure a stable initial dehydration effect.

Wedge Zone
After passing through the gravity zone, the coconut bran slurry enters the wedge zone. The two filter belts in this area gradually move closer together to form a wedge-shaped space, exerting gradually increasing pressure on the coconut bran slurry.
In the wedge zone, as the filter belt gradually pressurizes, the water in the slurry is further squeezed out. The pressure at this stage is relatively mild, and the main purpose is to prepare for the subsequent high-pressure extrusion stage while preventing the coconut bran slurry from being suddenly squeezed out of the filter belt when the pressure suddenly increases. The wedge zone is designed to allow the pressure to increase gradually to avoid sudden displacement of the slurry or uneven filtration in the subsequent extrusion zone.

Squeezing Zone
After pre-compression in the wedge zone, the coconut bran slurry enters the squeezing zone of the belt filter press. Here, strong mechanical pressure is applied between the two filter belts through multiple high-pressure rollers to further squeeze out the bound water in the slurry.
The squeezing zone usually contains multiple stages of rollers to gradually apply higher pressure to achieve maximum dehydration. The filter belt is repeatedly squeezed in the squeezing zone, and the moisture content of the coconut bran solids discharged at the end is greatly reduced, achieving the ideal dehydration effect.
After passing through the squeezing zone, the solid coconut bran is separated from the filter belt and becomes the final dehydrated product, while the filtrate is collected and processed.

Advantages of Belt Filter Press in Coconut Bran Dehydration

• Efficient dehydration capability
  The belt filter press gradually dehydrates the coconut bran slurry with a high moisture content through multi-stage pressing and filtration, ultimately achieving the purpose of reducing the moisture content. The belt filter press can process a large amount of raw coconut bran materials and maintain a stable dehydration effect during continuous operation, making it suitable for large-scale production.
• Continuous operation
  The belt filter press can realize continuous automatic operation without frequent shutdown, which can ensure the continuous dehydration process of coconut bran. This feature is particularly suitable for industrial production lines, saving manpower and time costs.
• Easy to operate
  Belt presses usually have an automated control system, which is easy to operate and requires only a small amount of manpower monitoring and adjustment to achieve stable production.

Conclusion

In general, the belt filter press provides an efficient, energy-saving, and environmentally friendly solution for coconut bran dehydration. Through the synergistic effect of the gravity zone, wedge zone, and squeeze zone, the belt filter press can efficiently separate water from the coconut bran slurry to ensure that the dryness of the final product is suitable for subsequent storage and processing. This process is efficient, continuous, and automated and is particularly suitable for the industrial processing of wet materials such as coconut bran.
