Russian Application of Belt Filter in Sugarcane Squeezing and Dehydration
Belt filter plays an important role in sugarcane dehydration and juice extraction, especially in sugar production, alcohol fermentation, and biomass energy industries. It improves the dehydration efficiency of sugarcane bagasse and recovers more sugarcane juice through continuous squeezing, thereby improving raw material utilization and economic benefits. The following is the application of belt filters in sugarcane squeezing and dehydration.
Working Principle of Belt Filter
The belt filter uses multiple layers of filter cloth or mesh belt to convey the material and gradually applies pressure through a series of rollers to squeeze out the juice from the bagasse. The whole process includes:

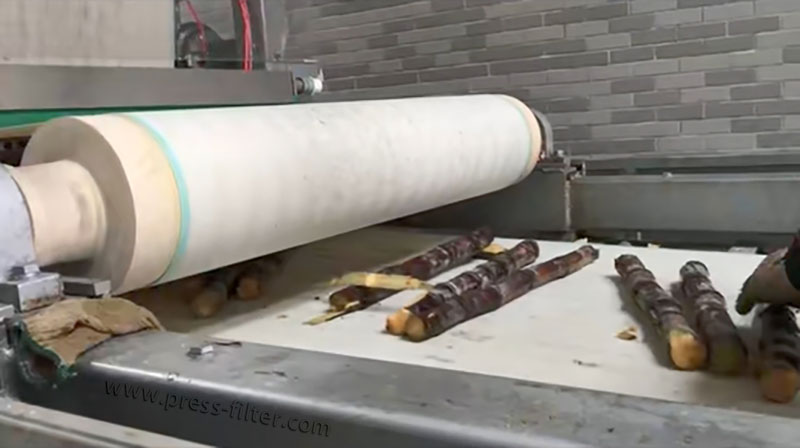

Feed pretreatment: The sugarcane is evenly distributed on the filter cloth after segmentation.
Gravity dehydration: Before the bagasse enters the pressing area, some free water is removed by its own gravity.

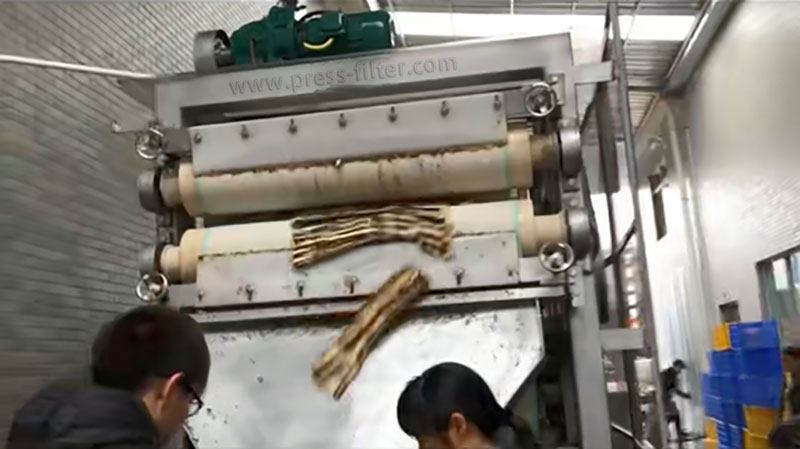

Multi-stage squeeze dehydration: The pressure is gradually increased by rollers of different diameters to achieve deep dehydration.

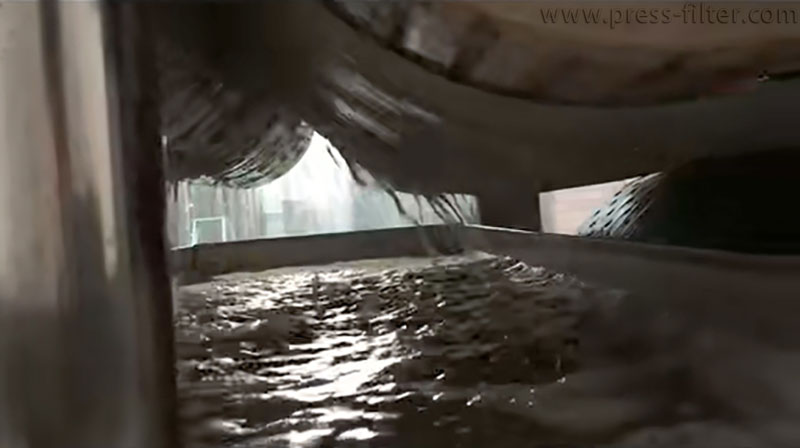

Filtrate collection: The sugarcane juice is collected and transported to subsequent processing steps, such as syrup extraction or alcohol fermentation.
Filter cake discharge: The dehydrated bagasse is transported to subsequent processes, such as fuel, feed, or composting.
Advantages of Belt Filter in Sugarcane Dehydration
High dehydration rate: It can squeeze out sugarcane juice more efficiently than traditional drum or screw pressing equipment, and improve the recovery rate.
Continuous production: It is suitable for large-scale sugar factories and alcohol factories to improve production efficiency.
Low energy consumption: It saves energy and reduces steam consumption compared with traditional equipment.
Easy operation: It has a high degree of automation and low maintenance cost.
Strong adaptability: It can handle different varieties of sugarcane and bagasse with different moisture content.
Typical Application Scenarios
Sugar industry
In sugar mills, belt filters are used to increase the extraction rate of sugarcane juice, reduce sugar loss, and reduce energy consumption in subsequent evaporation and crystallization.
Alcohol and biofuel production
Sugarcane juice can be used as the main raw material for ethanol fermentation, and belt filters can ensure that more fermentable sugars are extracted and increase alcohol production.
Resource utilization of sugarcane bagasse
Dehydrated sugarcane bagasse can be used as boiler fuel, biomass pellets, papermaking raw materials, or animal feed. Belt filters help reduce moisture content and make subsequent processing more efficient.
Conclusion
The belt filter has significant advantages in the process of sugarcane dehydration, which not only improves the recovery rate of sugarcane juice but also reduces energy consumption and waste disposal costs. Whether in the field of sugar production, alcohol production, or biomass utilization, it is an important equipment for improving production efficiency and resource utilization. If you need to choose a suitable belt filter model or optimize the dehydration process, you can provide specific working conditions and we can further explore the optimal solution!
